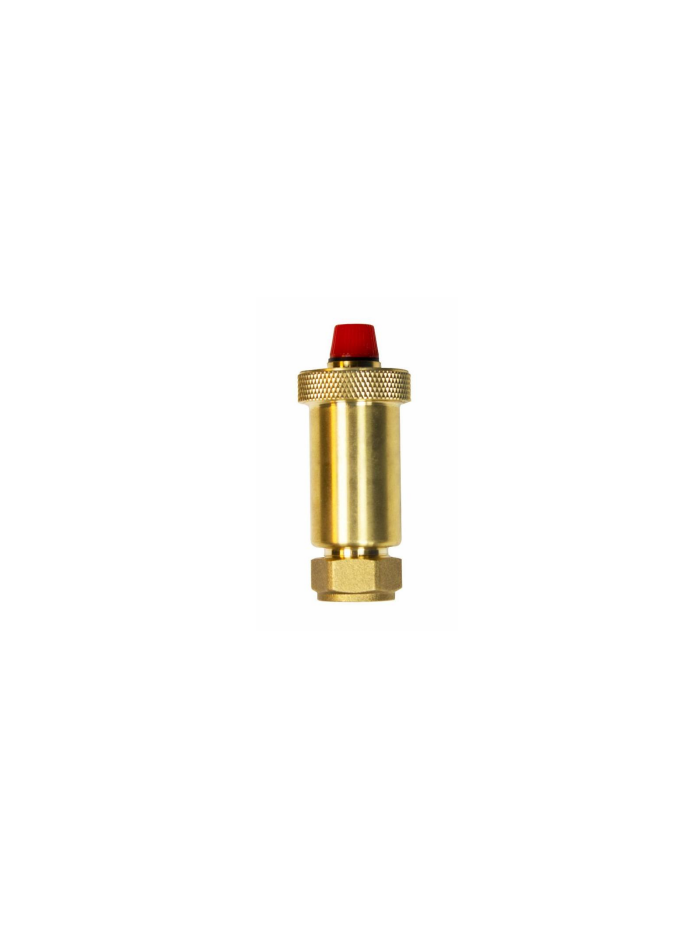

Automatic Air Vent
As low as
£2.33
£1.94
In stock
Only %1 left
SKU
MW-7313B
High quality automatic air vents for use in heating systems tovent airwhencommissioning a system. The device is available with 15mmcompressionconnection.
Automatic Air Vent
Description
High-quality automatic air vents for heating systems to vent air during commissioning. Supplied with a 15 mm compression connection. The device uses a heat-resistant polypropylene float linked to a simple valve: when air accumulates in the float chamber, the float drops, the valve opens, and trapped air is released. As water replaces the air, the float rises and closes the valve.
Performance
| Applicable Medium | Water, glycol solutions (max 30%) |
|---|---|
| Max Working Pressure | 10 bar |
| Working Temperature | Up to 110 °C (intermittent) |
| Connections | 15 mm compression joints |
Materials
| Valve Body | Brass |
|---|---|
| Valve Cap | Brass |
| Spring | Steel |
| Float | Heat-resistant polypropylene |
| Seals | EPDM |
