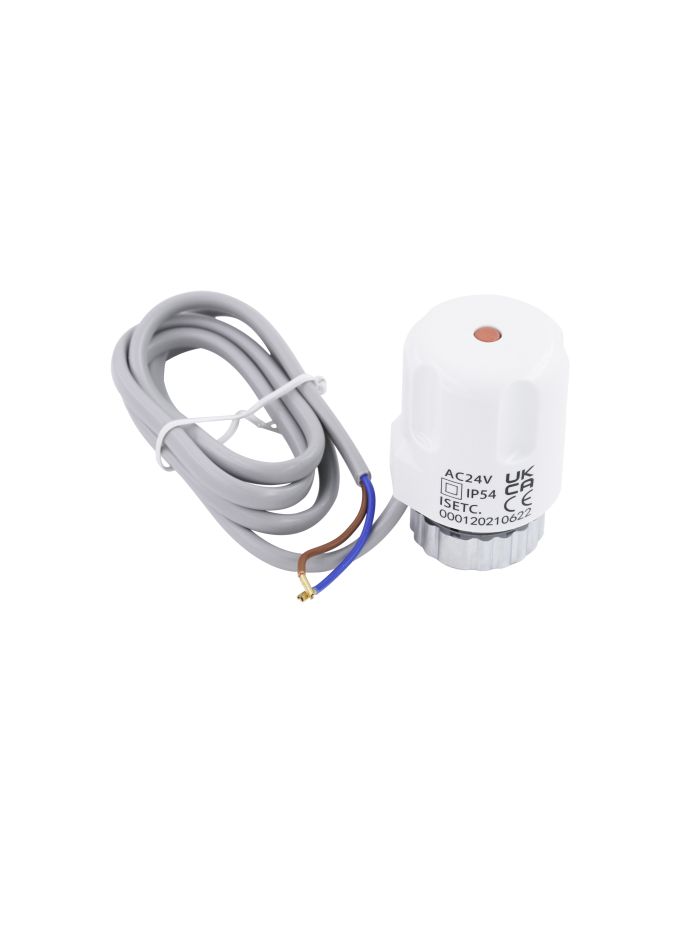

Actuator (4Wire)

Mounting Instructions

1. Remove the handle or cap from the body valve.

2. Position the actuator and manually tighten the ring nut of the actuator onto the body valve.

   • Do not use pipe wrenches, spanners, or similar tools.

3. Connect the electrical wiring.

Important Maintenance Notes

• The connecting cable must never be replaced.

• Opening the actuator will cause irreparable damage to the device.

• Faulty actuators must be replaced as complete units.

Warning

• The actuator must not be installed below the body valve.
