Bastion Pump
As low as
£79.20
£66.00
In stock
Only %1 left
SKU
MW-3002-25/6-131
Bastion Pump MW-3002-25/6 – High-efficiency inline heating pump with push-button control.

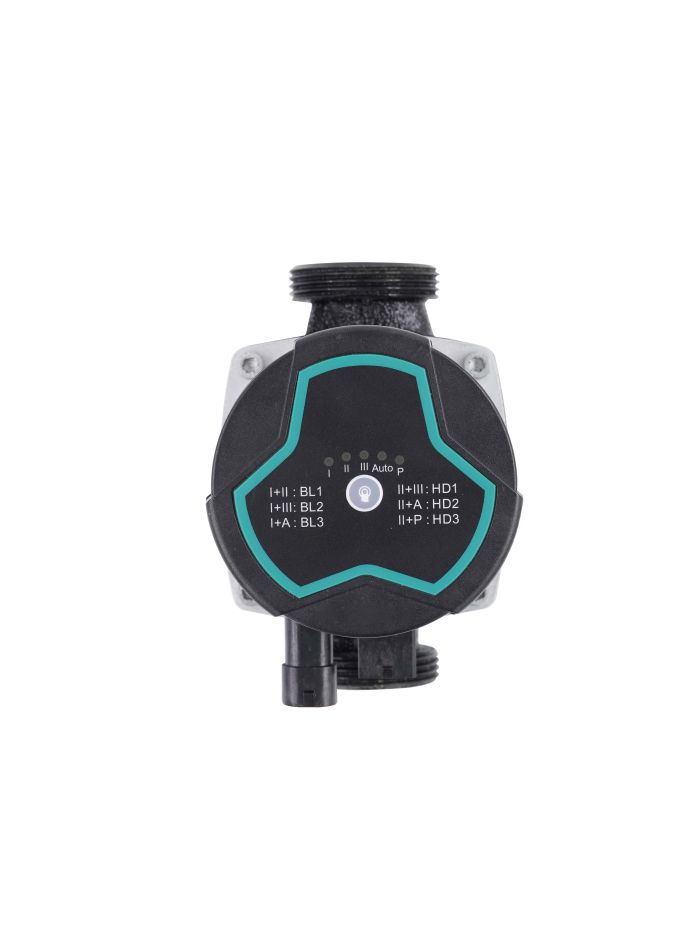

Bastion Pump MW-3002-25/6
The Bastion Pump MW-3002-25/6 is a high-efficiency heating pump designed for reliable performance in underfloor and central heating applications. Built with a durable cast iron inline housing and DN25 (G1 ½”) threaded connections, it offers a 130 mm housing length (180 mm available) and a delivery head of 6 m. The pump features push-button technology with multiple control modes, including proportional pressure (ΔP-v, ΔP-c) and constant speed I, II, III. With flexible control box orientation options, this pump reduces energy consumption while delivering consistent heating system performance.
Key Features
- High-efficiency pump for heating applications
- Inline cast iron pump housing
- Threaded connection: DN25 (G1 ½”)
- Delivery head: 6 m (at Q = 0 m³/h)
- Housing length: 130 mm (180 mm also available)
Controls
- Push-button technology
- SCU modes: ΔP-v, ΔP-c (UFH specific), constant speed I / II / III
- Control box orientation: 6 o’clock (3 or 9 o’clock available)
Model & Code
Full code: BastionPump MW-3002-25/6--*/SCU-6
| Segment | Value | Meaning |
|---|---|---|
| Series | 3002 | Series / family identifier |
| Connection | 25 | DN25 (G1 ½”) threaded |
| Head | 6 | Delivery head 6 m at Q = 0 m³/h |
| Length | 130 | Pump housing length 130 mm (180 mm available) |
| Control | SCU-6 | Push-button control, SCU modes (ΔP-v, ΔP-c, I/II/III), box at 6 o’clock |
Technical Specification
| Application | Underfloor and central heating |
|---|---|
| Pump housing | Cast iron (inline) |
| Connection | DN25 (G1 ½”) threaded |
| Delivery head | 6 m (at Q = 0 m³/h) |
| Housing length | 130 mm (180 mm available) |
| Control modes | ΔP-v, ΔP-c, Constant speed I / II / III |
| Control box orientation | 6 o’clock (3, 9 o’clock available) |
