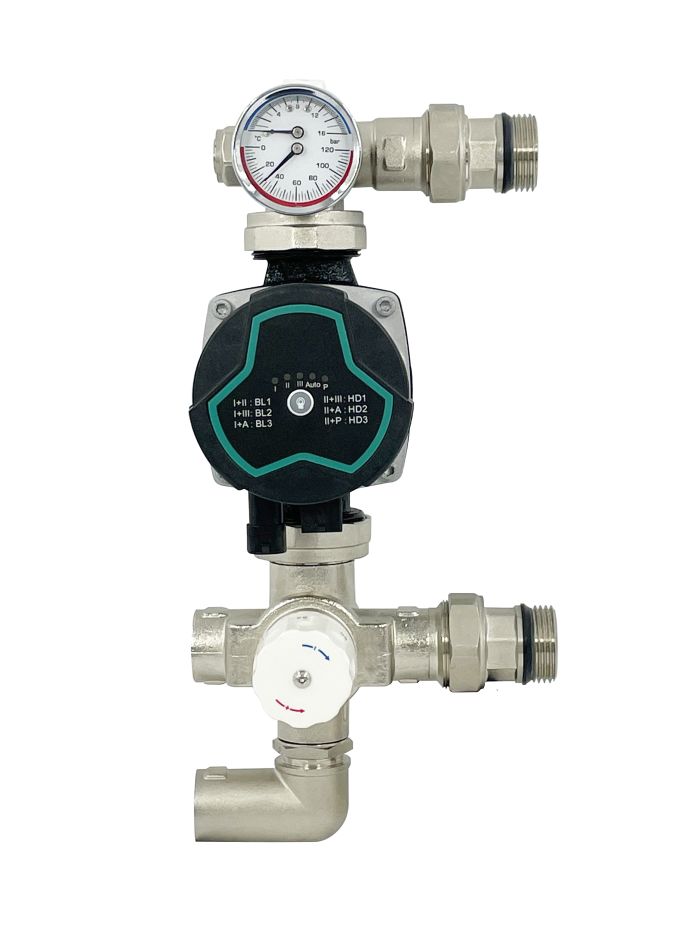

Blending Valve Pump
As low as
£75.24
£62.70
In stock
Only %1 left
SKU
MW-2536W
Designed to work with manifolds of all types, on 210mm centres. The thermostatic blending valve is a bolt on unit providing a quick and simple system to install.
Thermostatic Blending Valve
The thermostatic blending valve is the core of the control system. It is used with flow and return manifolds to control the flow temperature of water to the underfloor heating (UFH) pipework. It mixes the hot water from the boiler and supplies the water back to the UFH pipe at the correct temperature.
The mixing valve operates at a lower temperature than the radiator system, between 35°C and 60°C depending on the floor construction. The water supply temperature can be adjusted according to the structure of the floor.
Technical Data
| Maximum static pressure | 10 bar |
|---|---|
| Maximum temperature | 85°C |
| Adjustable control range | 35°C to 60°C |
| Factory pre-set | 45°C (control knob is in the adjustable position) |
