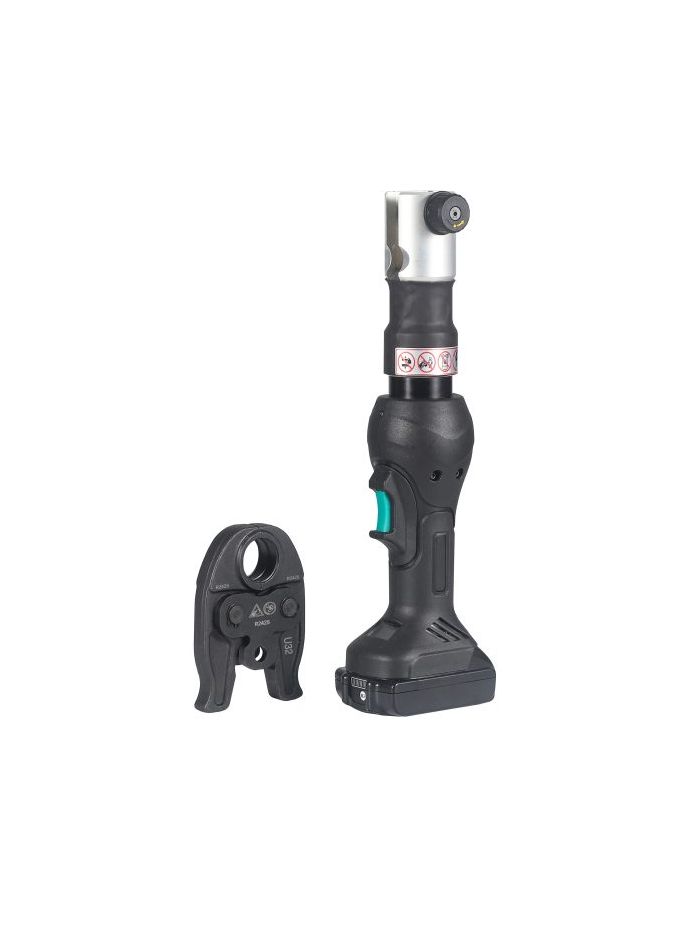

Electric hydraulic Clamp (Suitable for both M-Jaw and U-Jaw)
£750.00
£625.00
In stock
SKU
MWX-4064-A
The tools can be used for connecting stainless steel pipe, MLCP, PEX
pipe with suitable press fittings (Bastion Press and Copper Press
Fittings). The high pressure hydraulic system is powered by a Li-ion
battery, actuated by AC motor.
Compact Press Tool Kit
What’s Included
- Heavy-duty plastic protective case
- 2 × 18V 2.5Ah batteries
- Battery charger
- Optional jaws
Tool Specifications
Power: 18V | Output Force: 25 kN
Suitable For
- 16–32 mm PEX pipe
- Multi-layer composite pipe
- 15–28 mm copper pipe
- Stainless steel pipe
Press Tool Parts & Functions
| Part No. | Description | Function |
|---|---|---|
| 1 | Jaw | Interchangeable; ensures precise pressing for pipes of different sizes and materials. |
| 2 | Rotatable Head | Allows flexible operation in confined spaces. |
| 3 | Trigger Switch | Activates or stops the motor. |
| 4 | OLED Display | Indicates pressing times, remaining battery capacity, and tool temperature. |
| 5 | Li-ion Battery | Rechargeable 18V 2.5Ah battery supplying power to the tool. |
| 6 | Locking Bolt | Secures the pressing jaw into position. |
| 7 | Pump Body | Controls the flow direction of hydraulic oil during operation. |
| 8 | Retract Button | Manually releases pressure and returns the piston in case of error or adjustment during operation. |
| 9 | Tool Body | Compact design allows easy handling with one hand; automatically returns piston after pressing is complete. |
