Underfloor Heating System with Tacker Clips

The designer is free to size the floor structure—including insulating layer and screed reinforcement mesh— according to the overloads and operating conditions of the system.

Description of the System

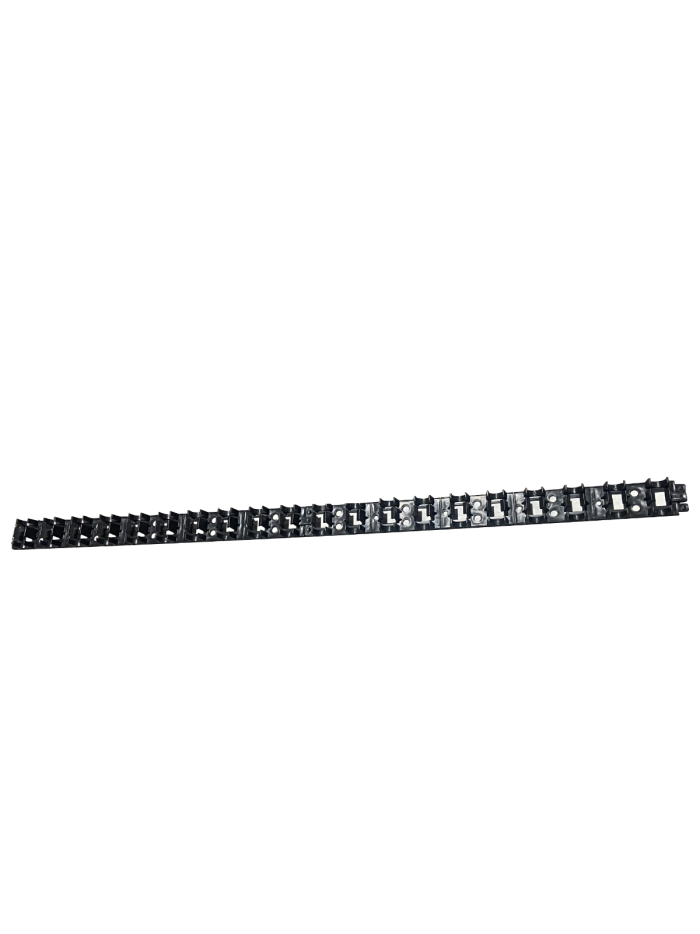

The bars with joints can be attached on top of a flat insulating layer (Plan Floor panel – fig. A, B, Roll Floor panel), using Tacker clips, or connected to sheets of the electro-welded mesh of the screed reinforcement (fig. C, D). These are placed on flat insulating sheets, waterproofed with a polyethylene cover. The bars are joined with special grooves (fig. E).

Models

• For Ø16–20 pipes, minimum spacing 10 cm, with adhesive base.
• For Ø16 pipes, minimum spacing 5 cm, with adhesive base.

Areas of Application

• Civil buildings
• Industrial buildings
• Heating of external areas
• Floating floors for gyms

System Installation

After laying the Plan Floor or Roll Floor insulating panel, proceed to install the pipes. These are attached with special clips using the Tacker tool from a standing position. The clips, provided in rows of 25, are loaded into the tool and then pressed into place by pushing the handle down—ensuring quick and secure fastening of the panels.
