Non-mixing Pump Set
As low as
£53.46
£44.55
In stock
Only %1 left
SKU
MW-2536C

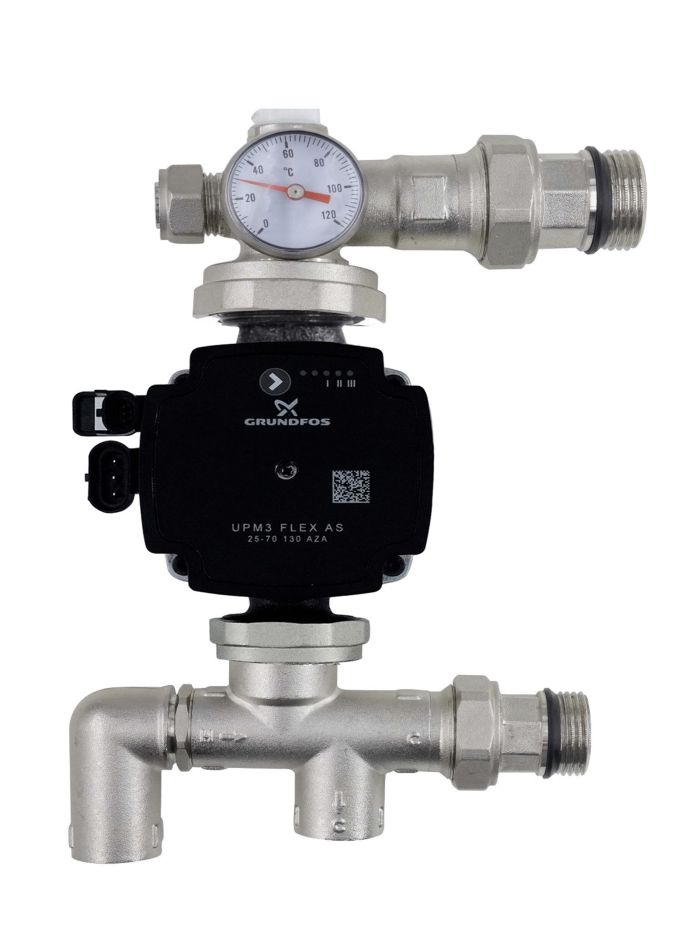

A compact prefabricated non thermostatic kit designed to provide a quick
and easy way of connecting the circulating pump, flow and return
connections onto a UFH manifold.
UFH Heat Pump System Control Pack
Designed to be used in heat pump or other low-temperature systems that do not require a thermostatic control valve. The kit includes a four-way connector, a connecting elbow, and a flow manifold connection tee piece which includes a ½" FBSP tapping that can be used for reading temperatures and pressures or as a connection point for the UFH Overheat Thermostat.
Features
- Designed for left- or right-hand connection
- Side or bottom connection of the flow and return pipes
- The angled flange on the pump connection keeps the flow and return pipes on the same level
Benefits
- Reduces installation complexity
- Saves installation time
- Allows maximum flexibility in the installation design
Technical Specification
| Maximum temperature | 90°C |
|---|---|
| Maximum pressure | 6 bar |
| Maximum flow rate | 32 lpm |
| Body | Nickel-plated brass |
| Pump seals | EPDM |
| Internal seals | EPDM |
| Connectors | Nickel-plated brass |
Stock & Sizing
| Stock Code | Product Name | Size |
|---|---|---|
| MW-2536C | UFH Heat Pump System Control Pack | ¾" inlets – 1" outlet |
