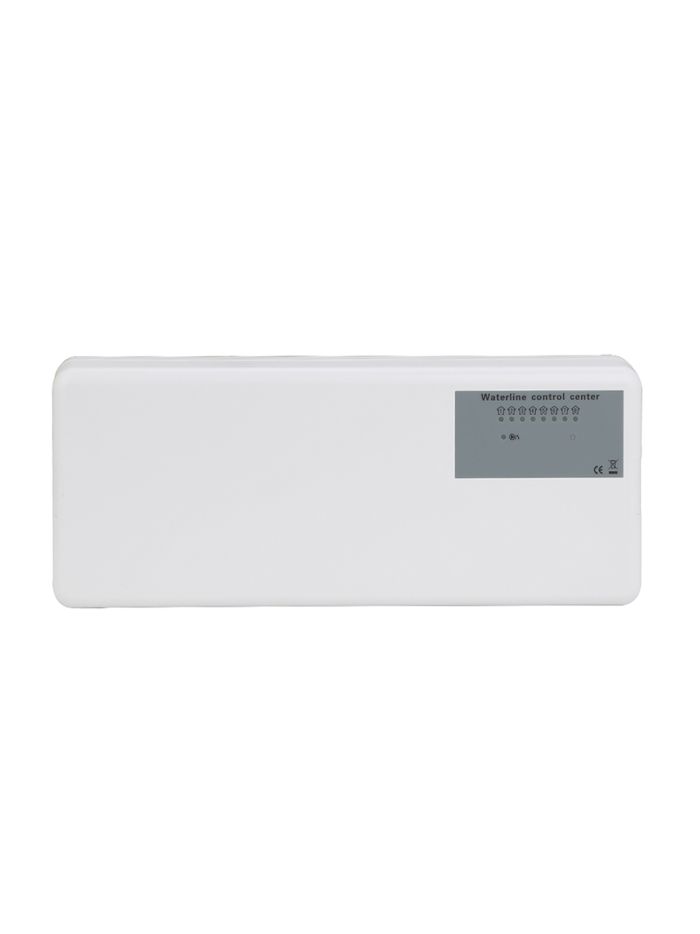

Megawave 8 Zone Wiring Centre- Commercial 24V
£41.40
£34.50
In stock
SKU
MW-3347-01-24V
The waterline heating system MW-3347-01(24V) has been developed to provide a temperature , control system for room heating / cooling, integrating the switching of primary heating sources with the control of water temperature and mixing devices. This ensures the best possible comfort conditions and also reduces energy consumption.
MW-3347-01 (24V) — Waterline Heating System
The MW-3347-01 (24V) waterline heating system provides a temperature control solution for room heating and cooling, integrating the switching of primary heating sources with control of water temperature and mixing devices. This ensures optimal comfort while reducing energy consumption.
System Components
- Sub-control room thermostat
- Water radiant boiler
- Manifold with actuator
- Control center ZL-3347-01 (24V)
- Motorized ball valve
Specification
| Power Source | 24 VAC ± 15% |
|---|---|
| Operating Temperature | -20 °C ~ 60 °C |
| Storage Temperature | -20 °C ~ 70 °C |
| Dimensions (W × H × D) | 280 mm × 110 mm × 40 mm |
| Color | White |
Features
- Each master controller supports up to 8 rooms/zones.
- Outputs for thermal actuators, boilers, pumps, and mixing valves.
- Indicator lights display output status for quick diagnostics.
