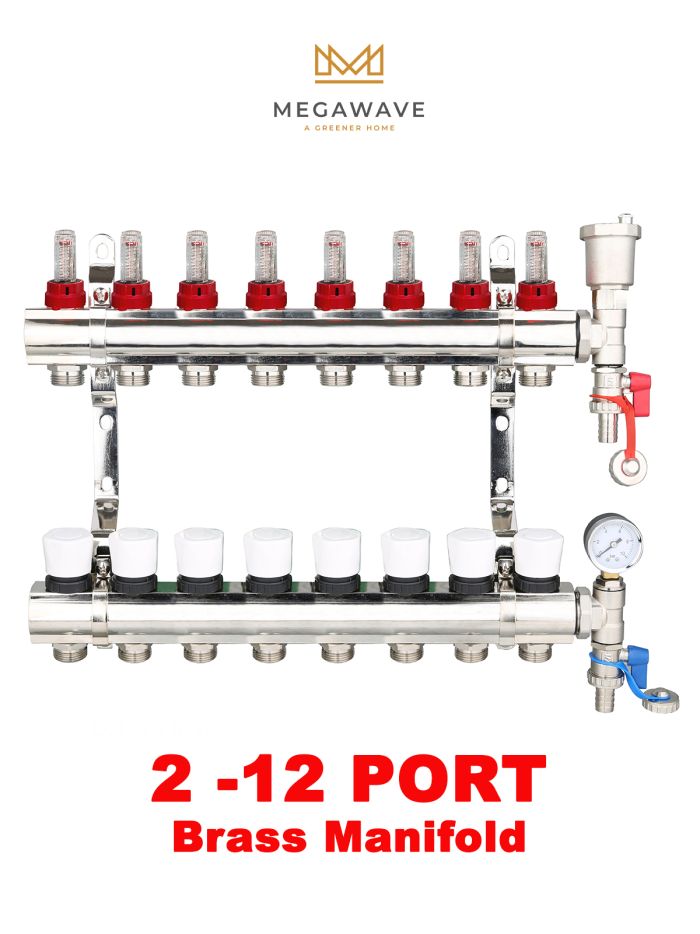

Megawave Brass Flowmeter Underfloor Heating Manifolds 2 - 12 Port System With Pressure Gauge and Auto Air Vent

Brass manifold for 2 up to 12 heating circuits for distribution, shut off and balancing of the heating/cooling water flow of radiant panel heating/coolingsystems in compliance with BS EN 1264-4. The flow rate for each heating circuit can becontinuously adjusted via a regulating shut-off valve integrated in the return circuit.

M30x1.5 valve connection for all common actuators (optional accessory).

Precise adjustment even at high flow rates.

Premium quality O-ring valve gaskets (EPDM) ensure permanent ease of operation andhigh durability.

1" MT flat-sealing connections to heat generator, connection to heating circuits via 3⁄4" eurocone for clamp ring screw connections.

Includes an end set with 3/4” swivel connection for shut-off, filling, draining and flushing.

Ready-mounted on wall bracket, low-noise pipe clamps in accordance with DIN 4109.

A wide range of supplementary systems, such as pumpgroups, hydraulic control units for manifolds, heat interface units and many more.
