MLCP Compression Adaptor
This is a series of compression fittings designed for use with pipes, ideal for situations where press fittings are not viable or where a transition to compression fittings is required (such as tap connectors, isolation valves, etc.).
CAI has developed a range of compression fittings from MLCP to copper, enabling easy connection of pipes to copper through compression fittings.
The key advantage of these single-piece fittings is the elimination of hot works. They can be connected to compression threads of 15, 22, or 28 millimeters, including our range of compression lever valves approved by WRA.
Compression Fittings — MLCP to Copper (Monoblocco)
Description
This series of compression fittings is designed for use with pipes where press fittings are not viable or where a transition to compression is required (e.g., tap connectors, isolation valves). CAI’s range enables easy connection from MLCP to copper using standard compression interfaces.
The key advantage of these single-piece fittings is the elimination of hot works. They connect to 15 mm, 22 mm, or 28 mm compression threads, including compatibility with compression lever valves approved by WRA.
Key Features
- Single-piece, hot-work-free installation.
- Direct MLCP → copper transition via standard compression.
- Compatible with 15/22/28 mm compression threads.
- Ideal when press tooling access is limited or impractical.

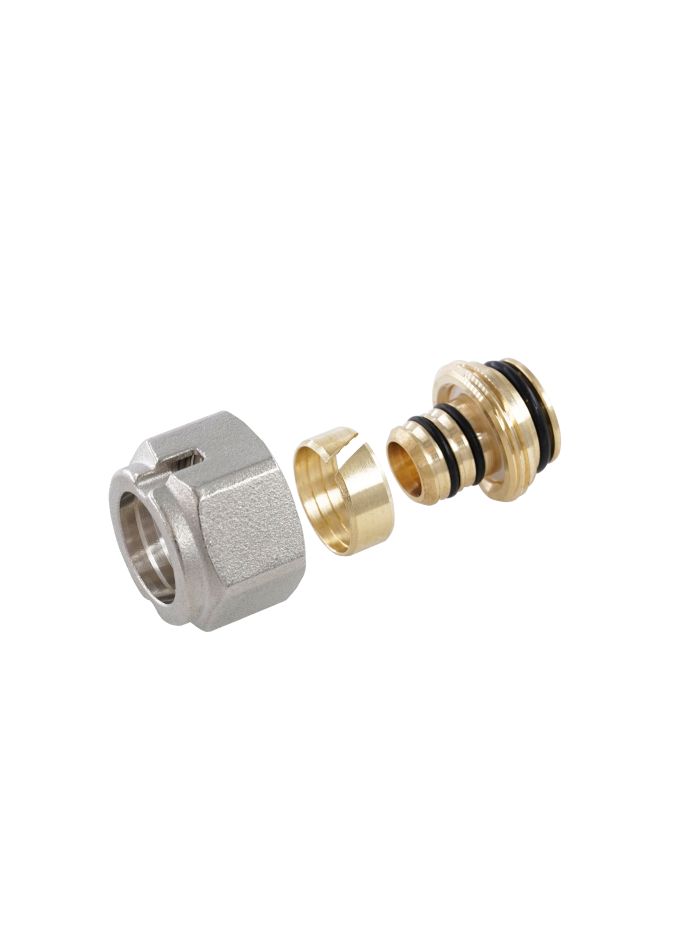

Construction Details — Monoblocco Fittings
The single-body fitting is supplied with components (nut, olive, adaptor) pre-assembled and ready for pipe insertion. A sight hole on the nut allows verification that the pipe is fully seated to the stop.
Illustration (Component List)
- Nut in HPb
- Adapter
- Washer in PTFE
- Split Olive
- Sealing O-Ring in EPDM
