Blending Valve with thermostat head
As low as
£77.22
£64.35
In stock
Only %1 left
SKU
MW-2548

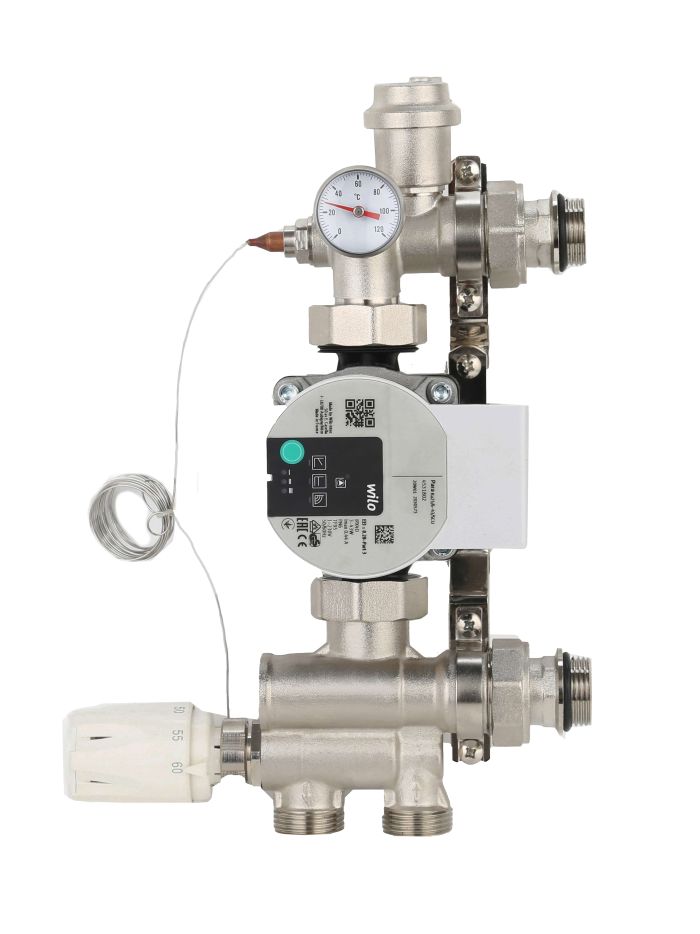

The MW-2548 is a control group for use with a manifold in underfloor heating applications.
The mixing valve on the MW-2548 is adjustable between 20°–65°C, which complies with the requirements of BS1264-4:2009 for initial warm-up temperatures of 20°–25°C.
It also includes a locking pin to set the maximum blend temperature.
MW-2548 Mixing Unit
The MW-2548 features an additional probe pocket for installing an optional over-temperature device, a throttle to increase the Kv of the mixing valve for larger systems, and a built-in non-return valve above the circulation pump. This prevents backfilling during system filling and reduces water loss if the circulation pump needs to be removed for maintenance.
Features and Benefits
- Advanced technology provides long-lasting, reliable performance.
- Precision-engineered materials and high-efficiency pump ensure durability.
- Inclusive temperature control ensures water temperatures entering the floor do not exceed design limits.
- Built-in thermostatic actuator with a temperature range of 20°–65 °C.
- Integrated flow rate control valve for improved flow regulation.
- Standard 210 mm manifold spacing and 1″ BSP connections allow broad compatibility.
- Optimized system design for all floor constructions and manifold products.
Technical Data
| Primary Circuit Max Temperature | 90 °C |
|---|---|
| Maximum Operating Pressure | 10 bar |
| Primary Circuit ΔP | 1 bar |
| Secondary Control Range | 20°–65 °C |
| Heating Capacity | ΔT 7 °C, ΔP available 0.25 bar |
| Thermostatic Regulation (By-pass pos.0) | 10 kW |
| Thermostatic Regulation (By-pass pos.5) | 12.5 kW |
| Mixing Valve Pressure Drop | Kv 3 |
| Pressure Drop with Open Bypass Valve | Kv max 4.8 |
| Thermometer Scale | 0°–120 °C |
| Mixing Unit Inlet Thread | G1″ M |
| Connection Thread | G1″ M |
| Circulator Connections | 1½″ takeoffs, 130 mm spacing |
