Pressure Test Pump
£85.14
£70.95
In stock
SKU
MW-RP-50
Testing pump MW-RP-50 isa precision tool for testing installation tightness using water or oil as testing liquid, a maximum testing pressureof50bar.

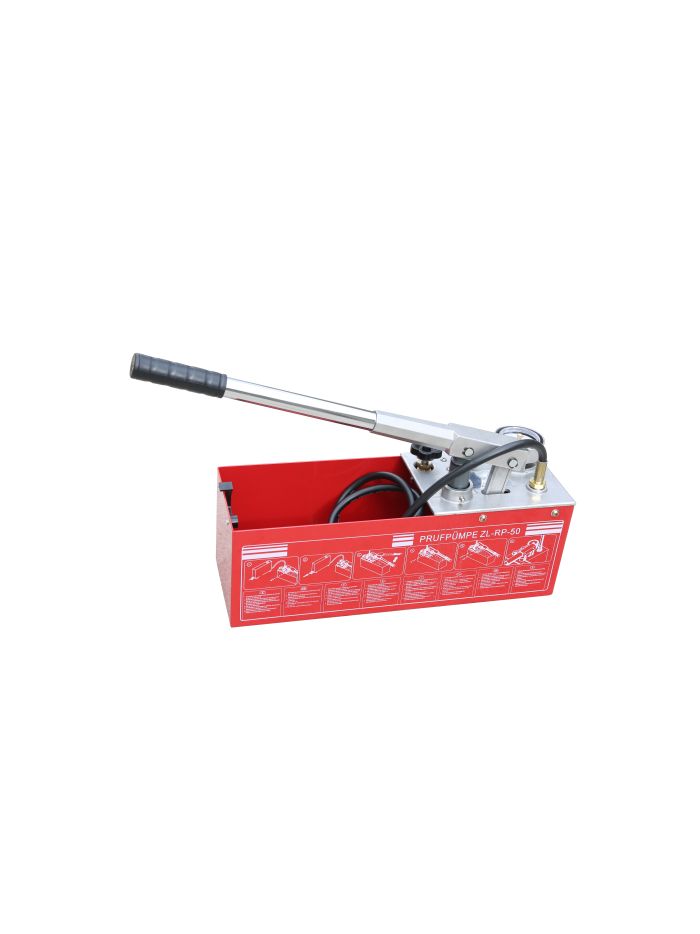

Pressure Testing Pump MW-RP-50
Specifications
| Name | Pressure Testing Pump |
|---|---|
| Code | MW-RP-50 |
| Dimensions (L × W × H) | 49 × 16 × 16 cm |
| Weight | 7.64 kg |
| Tank Volume | 12 L |
| Outlet Connection | R 1/2″ |
| Testing Fluid | Water, Oil |
| Maximum Temperature | 50 °C (120 °F) |
| Maximum Pressure | 50 bar (5 MPa) |
Pump Parts
- Pressure hose
- Locking hook
- Handle
- V1: Shut-off valve
- V2: Purge valve
- Tank
Maintenance
Keep the tank and pump system clean. The suction pipe is supplied with a filter to prevent dirt from entering the pump pressure system. If the filter becomes clogged, remove the dirt and clean it with water. Grease the piston periodically with water-repellent grease.
General Safety
CAUTION! Carefully read and follow this datasheet before operating the testing pump. Do not modify or use for other purposes. The pump must not be used if pressure hoses or any other parts are flawed or broken. Use only the specified liquids for testing.
